Graphical analysis of motion is a powerful tool that allows us to delve into the intricate details of how objects move. By representing motion through graphs, we can gain a deeper understanding of the relationships between position, velocity, and acceleration, enabling us to make accurate predictions and analyze patterns. This article serves as a comprehensive guide for students, introducing them to the fundamentals of motion graphs and highlighting their significance in real-life scenarios.
Introduction to Motion Graphs: Types and Representations
Graphical analysis of motion encompasses various types of graphs that provide valuable insights into the behavior of moving objects. The three primary types of motion graphs are position-time graphs, velocity-time graphs, and acceleration-time graphs.

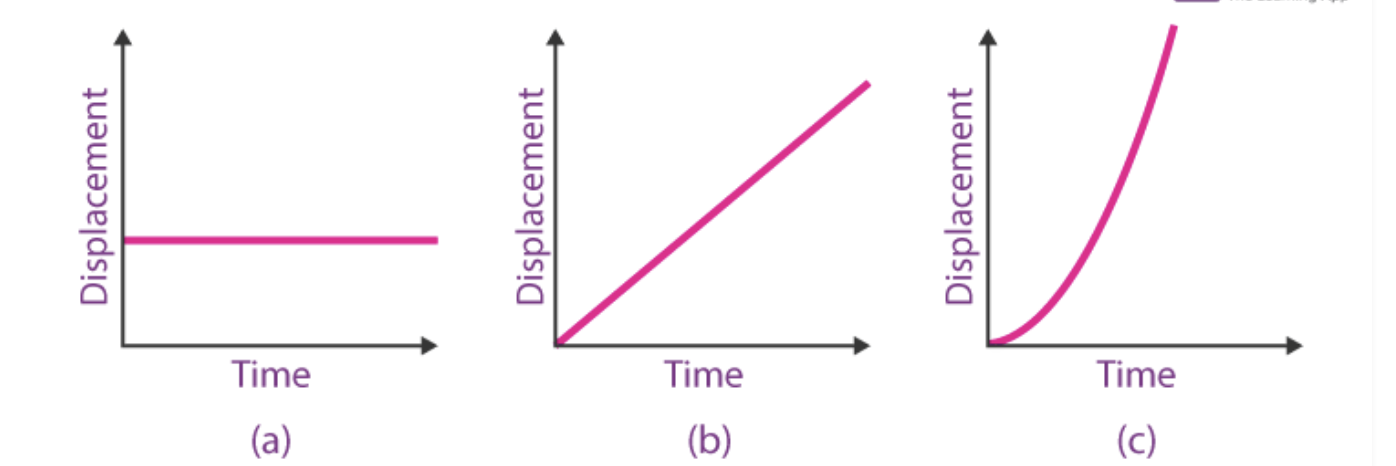

Position-time graphs display the relationship between an object’s position and the time it takes to reach that position. By plotting position on the y-axis and time on the x-axis, we can analyze an object’s displacement, speed, and rest intervals. Position-time graphs provide a visual representation of how an object’s position changes over time.
Take the first step towards coding mastery! Explore our Coding for Beginners course and unlock your potential. Enroll now and start your coding journey today!
Velocity-time graphs depict how an object’s velocity changes over time. Velocity, which refers to the rate at which an object changes its position, is plotted on the y-axis, while time is plotted on the x-axis. Velocity-time graphs offer information about an object’s acceleration, constant velocity, and deceleration. By examining the shape and slope of velocity-time graphs, we can understand the changing speed and direction of an object.Acceleration-time graphs illustrate the relationship between an object’s acceleration and the time it takes to experience that acceleration.
Acceleration is plotted on the y-axis, and time is plotted on the x-axis. These graphs help us understand the changes in an object’s velocity over time. The slope of an acceleration-time graph represents the rate at which an object’s velocity changes.
Slope and Gradient: Interpreting Rates of Change
Slope and gradient play a crucial role in interpreting motion graphs. The slope of a graph represents the rate of change between two variables. In the context of motion graphs, slope provides essential information about displacement, velocity, and acceleration.By calculating the slope of a position-time graph, we can determine an object’s velocity. The slope represents the object’s average velocity between two points on the graph. A positive slope indicates motion in the positive direction, while a negative slope represents motion in the opposite direction. A zero slope signifies that the object is at rest.
Discover the magic of Jolly Phonics and transform your child’s literacy journey. Explore our comprehensive program now and ignite their love for reading and writing!
Velocity-time graphs allow us to analyze an object’s acceleration through the slope. A positive slope indicates positive acceleration (speeding up), a negative slope represents negative acceleration (slowing down or decelerating), and a zero slope signifies constant velocity.Acceleration-time graphs provide insights into an object’s changing acceleration. A positive slope indicates a constant positive acceleration, a negative slope represents constant negative acceleration, and a zero slope suggests constant acceleration at zero.Understanding gradients is also essential in interpreting motion graphs.
The gradient of a graph represents the change in the y-variable per unit change in the x-variable. In position-time graphs, the gradient represents the object’s velocity, while in velocity-time graphs, it represents the object’s acceleration.
Area under the Curve: Calculating Displacement and Distance Traveled
Apart from slopes, the area under the curve in motion graphs holds valuable information. In position-time graphs, the area between the curve and the x-axis represents displacement. By calculating this area, we can determine the object’s change in position or displacement.
In velocity-time graphs, the area under the curve represents the distance traveled. By calculating this area, we can determine the total distance covered by the object, regardless of changes in direction or speed.
Ignite your child’s literacy journey with Jolly Phonics. Enroll now and witness the transformative power of this proven method. Start your child’s reading and writing success story today!
Calculating the area under the curve involves breaking the graph into smaller shapes, such as rectangles and triangles, and summing their areas. The trapezium rule can also be used for more complex curves.
Velocity vs. Time: Analyzing Changing Speed and Direction
Velocity-time graphs provide crucial insights into the changing speed and direction of an object. By observing the slope and shape of these graphs, we can analyze various aspects of motion.
The slope of a velocity-time graph represents acceleration. A positive slope indicates positive acceleration, a negative slope signifies negative acceleration or deceleration, and a zero slope represents constant velocity.
The shape of a velocity-time graph allows us to identify periods of constant velocity, acceleration, and deceleration. A horizontal line on the graph indicates constant velocity, while a diagonal line represents constant acceleration or deceleration.
How to use motion graphs in real life? Real-Life Applications: Analyzing Motion Graphs in Practical Scenarios
Graphical analysis of motion finds numerous applications in real-life scenarios. By examining motion graphs, we can gain insights into the behavior of objects in different contexts.Analyzing velocity-time graphs helps us understand the acceleration and deceleration of vehicles, such as cars. By studying the slopes and shapes of these graphs, we can determine the rate at which the car speeds up or slows down.Motion graphs are also useful in understanding the motion of objects in freefall. Position-time and velocity-time graphs can be employed to analyze the trajectory and speed of a falling object, such as a skydiver or a ball thrown vertically.
Boost your math skills with our online maths classes. Join now and unlock the power of numbers with our experienced instructors. Enroll today for a brighter mathematical future!
Projectile motion, which refers to the curved path followed by an object in motion under the influence of gravity, can be studied using motion graphs. By analyzing the motion of a projectile through position-time and velocity-time graphs, we can determine the object’s height, range, and maximum height.
Key Takeaways
- Graphical analysis of motion involves representing motion through graphs, such as position-time, velocity-time, and acceleration-time graphs.
- Position-time graphs display the relationship between an object’s position and the time it takes to reach that position.
- Velocity-time graphs depict how an object’s velocity changes over time, providing information about acceleration, constant velocity, and deceleration.
- Acceleration-time graphs illustrate the relationship between an object’s acceleration and the time it takes to experience that acceleration.
- The slope of a graph represents the rate of change between variables, such as velocity and time.
- Slope analysis helps determine displacement, velocity, and acceleration from motion graphs.
- The gradient of a graph represents the change in the y-variable per unit change in the x-variable.
- The area under the curve in position-time graphs represents displacement, while in velocity-time graphs, it represents distance traveled.
- Velocity-time graphs allow for the analysis of changing speed and direction, with slope indicating acceleration or deceleration.
- Real-life applications of motion graphs include analyzing car speed, understanding freefall, and studying projectile motion.
- Mastering graphical analysis of motion enhances problem-solving skills and provides a foundation in physics and engineering.
- Position-time graphs provide insights into an object’s displacement, speed, and rest intervals over time.
- Velocity-time graphs help analyze an object’s acceleration, constant velocity, and deceleration.
- Acceleration-time graphs assist in understanding changes in an object’s velocity over time.
- Positive slopes in motion graphs indicate motion in the positive direction, negative slopes represent motion in the opposite direction, and zero slopes indicate rest or constant velocity.
- Gradients in position-time graphs represent an object’s velocity, while gradients in velocity-time graphs represent acceleration.
- The area under the curve in position-time graphs helps calculate an object’s displacement.
- The area under the curve in velocity-time graphs helps determine the total distance traveled by an object.
- Velocity-time graphs allow identification of periods of constant velocity, acceleration, and deceleration through their shape.
- Graphical analysis of motion finds practical applications in analyzing car speed, understanding freefall motion, and studying projectile motion.
- By mastering graphical analysis of motion, students can develop problem-solving skills, make accurate predictions, and build a strong foundation in physics and engineering.
Why You Should Take an Understanding Motion Graphs in Physics Course from Dot and Line Learning
The Understanding Motion Graphs course offered by Dot and Line Learning is a valuable opportunity to deepen your understanding of motion graphs and their analysis. By enrolling in this course from their reputable online platform, you will gain the following benefits:
- Comprehensive Knowledge: The course provides a thorough exploration of motion graphs, equipping you with the skills to analyze patterns and relationships effectively. You will understand how to interpret position-time, velocity-time, and acceleration-time graphs with confidence.
- Expert Guidance: Dot and Line Learning’s experienced instructors will guide you through the course, offering clear explanations and practical examples. Their expertise ensures that you grasp the concepts easily and build a solid foundation in motion graph analysis.
- Practical Applications: The course emphasizes real-life applications of motion graphs, allowing you to see the relevance and importance of these concepts in various fields, from physics research to engineering and beyond.
- Interactive Learning: Dot and Line Learning’s online platform offers an interactive learning experience. Engaging exercises and quizzes help reinforce your understanding, allowing you to actively apply your knowledge and track your progress.
- Flexibility and Convenience: With Dot and Line Learning, you can access the course materials at your own pace, fitting your studies into your schedule. This flexibility ensures that you can learn comfortably and thoroughly, without any time constraints.
Embark on the Understanding Motion Graphs course from Dot and Line Learning to expand your physics skills and gain a deeper understanding of patterns and relationships in motion. Enroll now and unlock the secrets behind motion graph analysis to excel in your academic or professional pursuits.
If you have reached this part of the article and still believe that you are struggling with the concept, you need not worry because fortunately, there is a plethora of online resources like websites which focus on clearing the doubts of students via online courses which are delivered by expert tutors. So, feel free to take additional help if you feel that you struggle with this topic!
Conclusion
Graphical analysis of motion provides a powerful framework for understanding the complexities of movement. By studying motion graphs, students can develop a deep comprehension of the relationships between position, velocity, and acceleration. Motion graphs allow us to interpret rates of change through slopes and gradients, calculate displacement and distance traveled through area under the curve, and analyze changing speed and direction through velocity-time graphs.
Moreover, motion graphs find practical applications in various real-life scenarios, such as analyzing car speed, understanding freefall, and exploring projectile motion. By mastering graphical analysis of motion, students can enhance their problem-solving skills, make accurate predictions, and develop a solid foundation in physics and engineering.
FAQs:
- How can I determine the average velocity of an object from a position-time graph?
To determine the average velocity of an object from a position-time graph, you need to calculate the change in displacement and divide it by the change in time. The formula is: Average velocity = Change in displacement / Change in time.
- How can I calculate the acceleration of a car from a velocity-time graph?
To calculate the acceleration of a car from a velocity-time graph, you need to determine the change in velocity and divide it by the change in time. The formula is: Acceleration = Change in velocity / Change in time.
- How can I find the distance traveled by an object from a velocity-time graph?
To find the distance traveled by an object from a velocity-time graph, you need to calculate the area under the curve of the graph during the given time interval. The total area represents the distance traveled by the object.
- How can I determine the change in velocity of an object from an acceleration-time graph?
To determine the change in velocity of an object from an acceleration-time graph, you need to calculate the area under the curve of the graph during the given time interval. The total area represents the change in velocity.
- How can I calculate the average speed of a train from a position-time graph?
To calculate the average speed of a train from a position-time graph, you need to determine the total distance traveled by the train during the given time interval and divide it by the total time taken. The formula is: Average speed = Total distance / Total time.
